20A Solar Panel Battery Regulator Charge Controller LCD 12V/24V 4 USB 20AMP PWM
-
24 Hours Dispatch | 12 Months Warranty
20A Solar Panel Battery Regulator Charge Controller LCD 12V/24V 4 USB 20AMP PWM
Self-Consumption: â�3.5mA/24V
Temperature Compensation Coefficient: -4mV/℃/2V(25℃)
Input Voltage: 9V-32V
Battery Voltage: 12V/24V(Auto Distinguish)
Rated Charge Current: 20A
Rated Discharge Current: 20A
Maximum Solar Panel Voltage: <50V
Float Voltage For AGM (Default): 13.8V (Programmable)
Cut-Off Voltage For AGM(Default): 14.4V(Programmable)
Discharge Recovery Voltage For AGM (Default): 12.6V (Programmable)

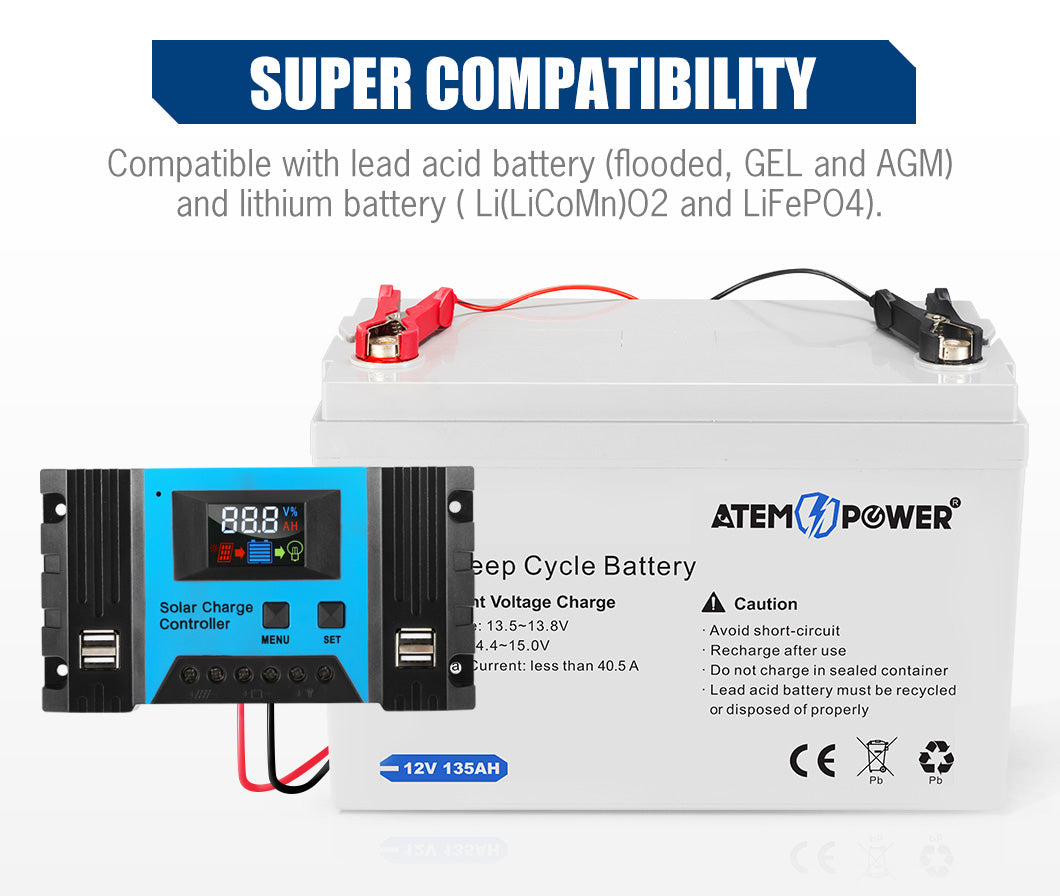

Battery Type: Lead Acid Battery(Flooded, GEL and AGM) & Lithium Battery(Li(LiCoMn)O2 and LiFePO4)
USB Port: 5V/1.2A
Standby Current: <10.7mA
Ambient Temperatures: -15℃- 50℃
Dust-proof: Yes
Package Content：
1 x Solar Charge Controller
1 x User Manual
