DC12V Relay Module Bluetooth Relay Module Relay Normally Open/Close 10m Control
-
24 Hours Dispatch | 12 Months Warranty
DC12V Relay Module Bluetooth Relay Module Relay Normally Open/Close 10m Control

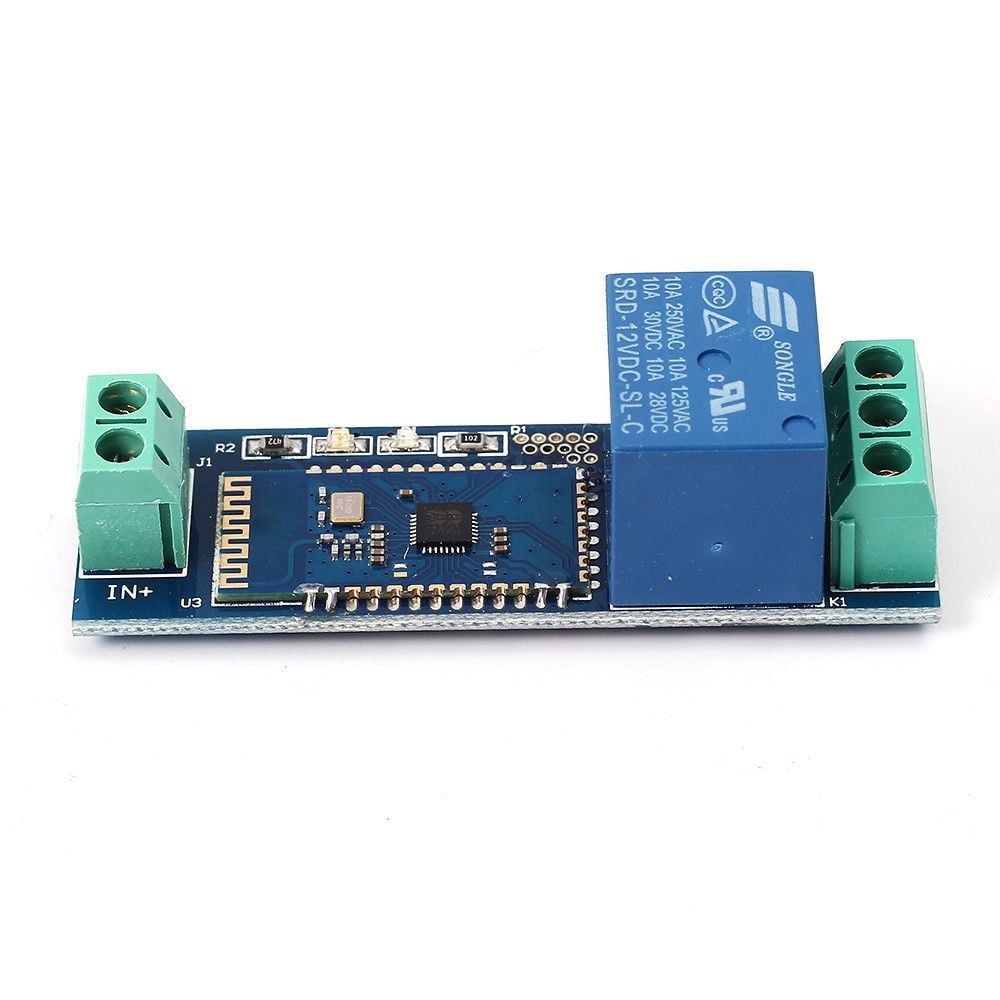

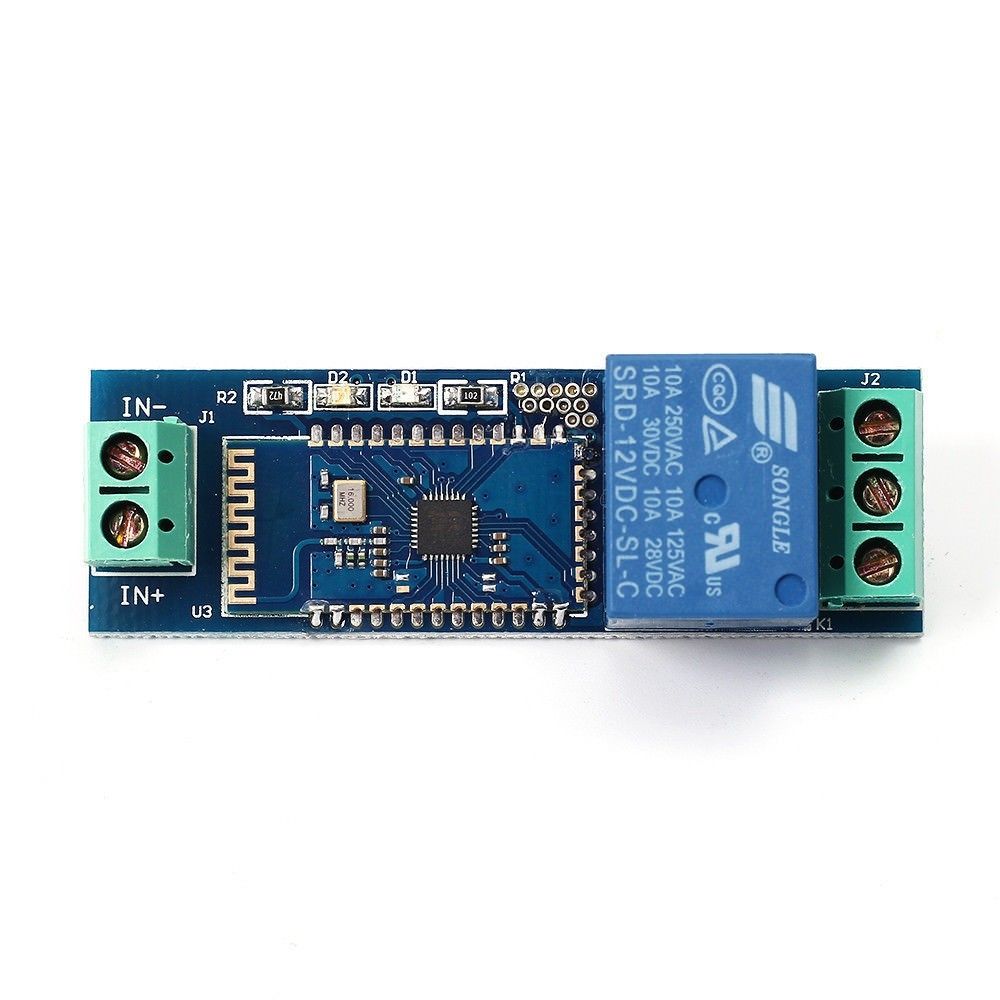

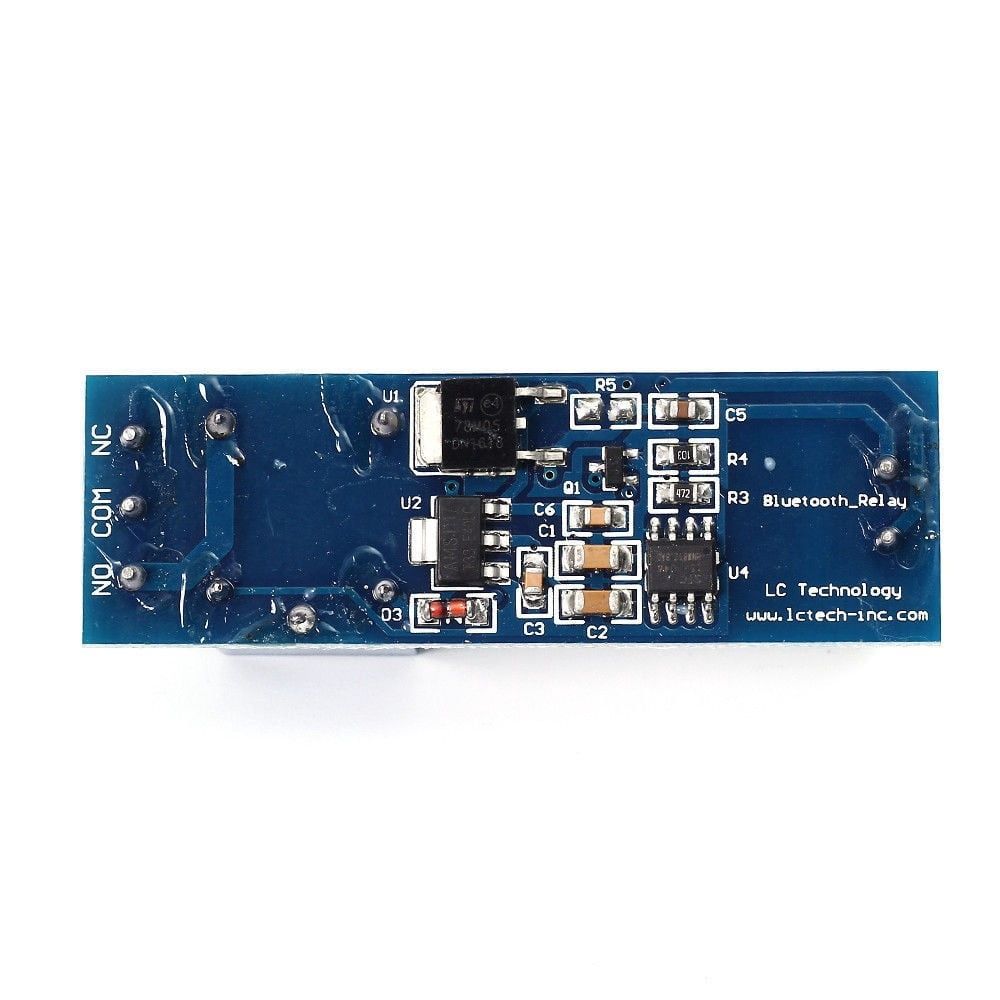

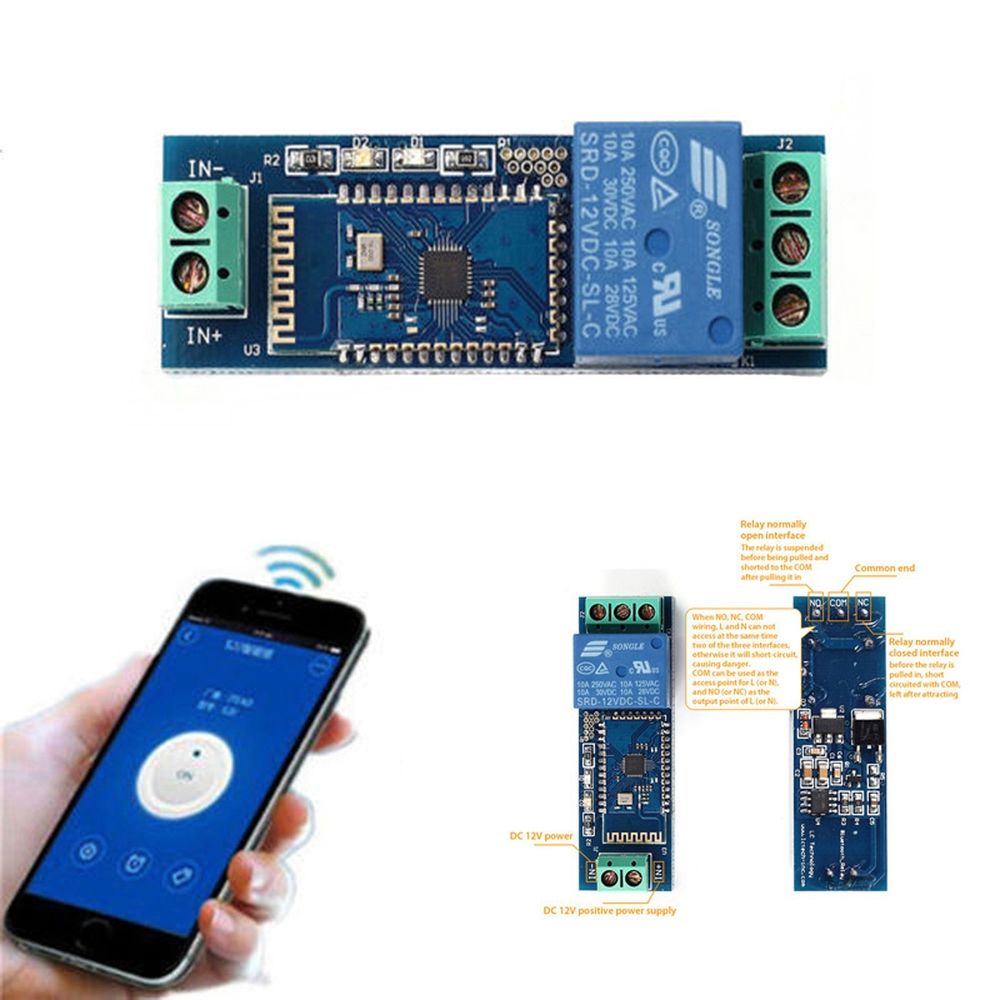

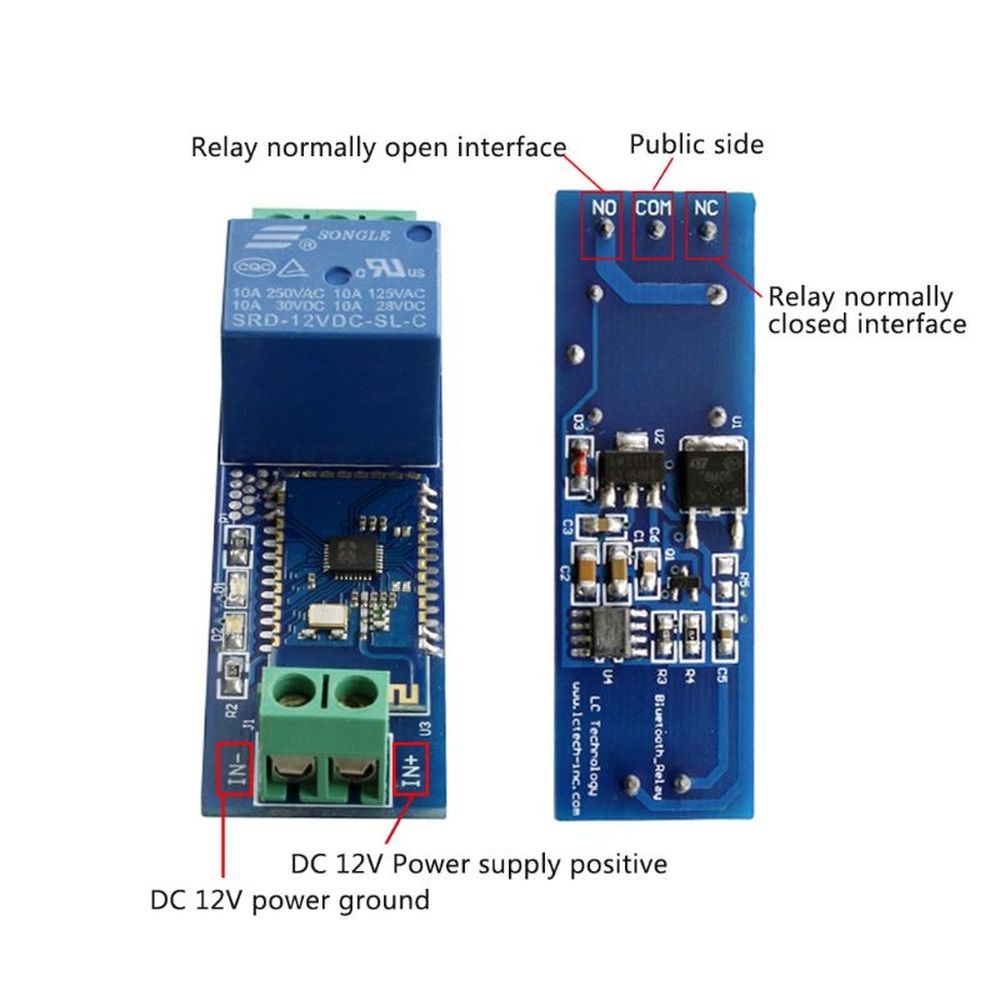

Features: Bluetooth relay module,mobile phone switch,web/bluetooth module. Relay normally open interface: hanging before relay is shooting,short connect with COM after shooting. Relay normally close interface: hanging after shooting,short connect with COM before shooting. module only,other accessories demo in the picture are not included! Instructions:Install the "bluetooth intelligent control" app on the android phone terminal after the correct connection, search for the bluetooth device and connect it. The pairing password is 1234.Long press the gray box in the interface to add the serial port instruction, and input the name and content of the instruction (open the relay when the instruction content is A00101A2 / close the relay when the instruction content is A00100A1). And choose to send in the form of hexadecimal, then the corresponding shock box can control the switch of the relay, you can also download other bluetooth app in the app store by sending instructions to control. Parameters:Onboard Module: onboard SPP-C bluetooth serial port integrated with wireless control function.Onboard relay: onboard 12V,10A/250V AC,10A/30V DC relay,longlife relay,can absorb 0.1 million times continuously.Protective Drain Diode: equip with diode drain protection,and short response time.Indicator: Bluetooth status indicator(slow flashing without connection,steady flashing after connection) and relay indicator light(light up after shooting).Control Distance: 10m(wide and open environment)Work Stress: DC12VDC max.voltage control: DC30VAC max.voltage control: AC250V Specification:Type: BluetoothSize: One Size2x6.2cm(0.79x2.44in)Quantity: 1 Pc Package includes:1 x Module
Brand new and hight quality. Bluetooth relay module,mobile phone switch,web/bluetooth module. Relay normally open interface: hanging before relay is shooting,short connect with COM after shooting. Relay normally close interface: hanging after shooting,short connect with COM before shooting. Your satisfaction and positive feedback is very important to us. If you have any problems about the item, please do not have any hesitation to contact us. We would solve your problem first.
