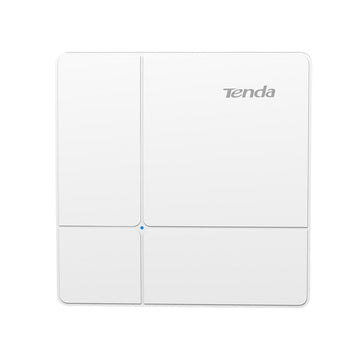

Tenda i24 AC1200 Wireless Ceiling Mount Access Point
-
24 Hours Dispatch | 12 Months Warranty
Tenda i24 AC1200 Wireless Ceiling Mount Access Point
i24 is a gigabit dual-band ceiling access point that compliant with IEEE 802.11ac Wave 2, and offers a concurrent data rate up to 1167 Mbps. Powered by MU-MIMO technology, letting you enjoy better experience. And the built-in omni-directional antennas broaden the wireless coverage of a single AP. In addition, you are allowed to adjust its transmit power as required using the web UI, and use an IEEE 802.3at-compliant PoE sourcing equipment to power on it, achieving long-distance power supply without tampering your existing grid network. You are also allowed to use Tenda access controllers (AC) to configure and manage multiple i24 in a centralized manner.
Mode:i24
Appearance:Ceiling AP
Dimension:178 mm × 178 mm × 38 mm
Frequency Band:2.4 GHz, 5 GHz
Wireless Standards:IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Data Rate:
2.4 GHz data rate: 1 - 300 Mbps
5 GHz data rate: 6 - 867 Mbps
Ethernet Ports:1 × 10/100/1000 Base-TX port
Button:1 × Reset
LED indicator:1 × Power
Maximum Power Consumption:Full-load 13.5W
Power supply standard:IEEE 802.3at
Operating Mode:AP, Client+AP
SSID Hidden Supported
Max. No. of SSID:
2.4 GHz: 8
5 GHz: 4
Max. connected clients:
2.4 GHz: 128
5 GHz: 128
WEP:Supported
WPA2-PSK:Supported
WPA-PSK:Supported
WPA2:Supported
WPA:Supported
Access Control:MAC address-based
Adjustable Transmission Power:Supported
AP Isolation:Supported
Connected clients control:Supported
RSSI Threshold:Supported
WMM:Supported
VLAN Tagging for SSID:Supported
Antenna gain:4 dBi
Output Power:
2.4 GHz MCS8 output power: 26 +/- 1.5 dBm
5 GHz MCS8 output power: 24 +/- 1.5 dBm
Sensitivity:
802.11b RX sensitivity: -93 dBm
2.4 GHz 802.11n (MCS7) RX sensitivity: -72 dBm
5 GHz 802.11a RX sensitivity: -93 dBm
5 GHz 802.11n (MCS7) RX sensitivity: -74 dBm
LED control:Supported
Diagostic:Ping, Traceroute
Schedule Reboot:Supported
Reboot at specified interval:Supported
Management:Web UI
Syslog:Supported
Firmware Upgrade:Local and AC upgrade
Reboot:Local and AC reboot
Reset:Local and AC reset
Backup Configuration:Supported
Restore Configuration:Supported
Default Settings:
Default login IP address: 192.168.0.254
Default user name: admin
Default password: admin
Temperature:
Operating temperature: -10°C - 45°C
Storage temperature: -30°C - 70°C
Humidity:
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (10% - 90%) RH, non-condensing
Certification:CE/FCC/RoHS
Product Contents:
1 x Tenda i24 AC1200 Wireless Ceiling Mount Access Point
