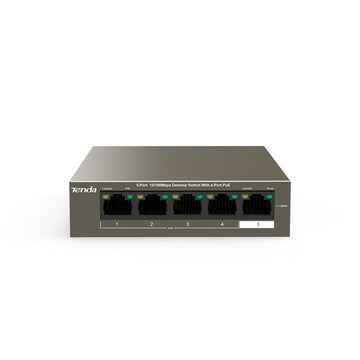

Tenda TEF1105P-4-63W 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
-
24 Hours Dispatch | 12 Months Warranty
Tenda TEF1105P-4-63W 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
TEF1105P-4-63W is a Tenda PoE switch that offers 5 10/100 Mbps Base-TX RJ45 ports. Up to 250 meters long distance transmission, beyond hundred meters transfer limit. 6KV lightning protection PoE switch is the real monitoring private switch. Ports 1-4 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 58W the whole device.
| Standard & Protocol | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at |
| Indicator | 5 × Link/Act per device 4 × PoE per device 1 × Power per device |
| Interface | 4 10/100Base-Tx ports(Data/Power) 10/100Base-Tx port(Data) |
| Port | Lightning Protection: 6KV |
| Store & Forward | Yes |
| exchange capacity | 1 Gbps |
| Packet Forwarding Rate | 0.744Mpps |
| MAC Address Table | 2K |
| PoE supply management | Port 1 to Port 4 support IEEE802.3at/af PoE standard |
| PoE through pin | 1 2 4 5 +, 3 6 7 8 - |
| Power Input | AC: 100-240V~ 50/60Hz |
| Dimension | 100×100×26mm ( W x D x H ) |
| Power Consumption | in full configuration:<63W PoE Max Power Supply: 58W |
| Ports feature | Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. Extend Mode: If the extend mode is enabled, the transmission distance of both power and data will extend up to 250m(10Mbps), this funcation can replace the extender and parts of the Fiber. It will extend the distance of the whole system and save the cost of the project. |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Product Contents:
1 x Tenda TEF1105P-4-63W 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
