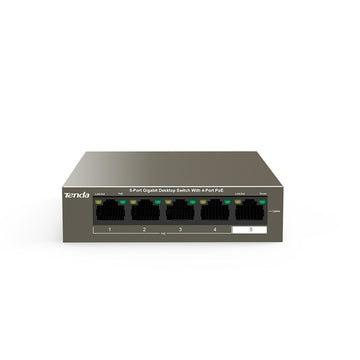

Tenda TEG1105P-4-63W 5-Port Gigabit Desktop Switch with 4-Port PoE
-
24 Hours Dispatch | 12 Months Warranty
Tenda TEG1105P-4-63W 5-Port Gigabit Desktop Switch with 4-Port PoE
TEG1105P-4-63W is a Tenda PoE switch that offers 5 × 10/100/1000 Mbps Base-TX RJ45 ports. Ports 1-4 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3 at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 58 W and can supply power to APs, IP cameras, and IP phones and exchange data with them through CAT5 cables. It also provides simple management modes such as VLAN to help reduce cabling costs of IP terminals like APs and IP cameras.
| Standard & Protocol | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| MTBF | ≥ 100,000hours |
| Indicator | 5 × Link/Act per device 4 × PoE per device 1 × Power per device |
| Interface | 4 10/100/1000Base-T ports(Data/Power) 1 10/100/1000Base-T port(Data) |
| Lightning Protection | 6KV |
| Store &Forward | Yes |
| exchange capacity | 10 Gbps |
| Packet Forwarding Rate | 7.44Mpps |
| RAM Data Buffer | 1Mb |
| MAC Address Table | 2K |
| PoE supply management | Port 1 to Port 4 support IEEE802.3at/af PoE standard |
| PoE through pin | 1 2 4 5 +, 3 6 7 8 - |
| Input Voltage | AC: 100-240V~ 50/60Hz |
| Dimension | 100 × 100 × 26mm ( W x D x H ) |
| Power Consumption | in full configuration:<63W PoE Max Power Supply: 58W |
| Port Features | Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. VLAN: In this mode,1-4 ports of the switch cannot communicate with each other, but can communicate with the 5 port .Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Package Content:
1 x Tenda TEG1105P-4-63W 5-Port Gigabit Desktop Switch with 4-Port PoE
