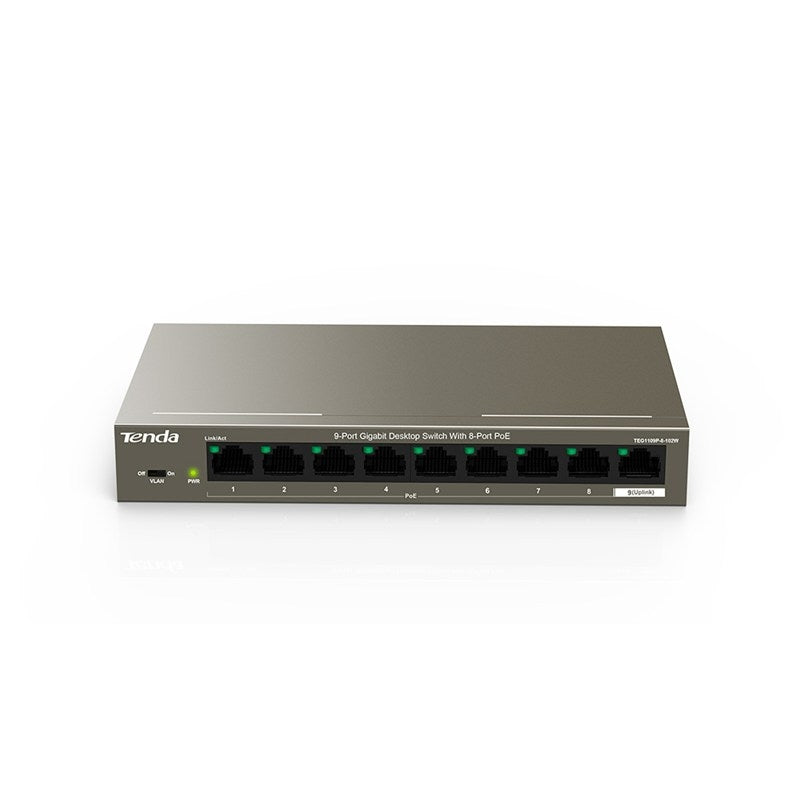

Tenda TEG1109P-8-102W 9-Port Gigabit Desktop Switch with 8-Port PoE

Regular price $198.99
Sale price $198.99 Regular price $208.95
Unit price
Tax included.
  • 24 Hours Dispatch | 12 Months Warranty

Tenda TEG1109P-8-102W 9-Port Gigabit Desktop Switch with 8-Port PoE

Tenda TEG1109P-8-102W 9-Port Gigabit Desktop Switch with 8-Port PoE

Regular price $198.99
Sale price $198.99 Regular price $208.95
Unit price
Product description
Shipping
Return
Reviews

TEG1109P-8-102W is the gigabit unmanaged lightning protection switch which is Tenda specifically developed for requirement of building Gigabit WLAN and HD camera monitor network.With high-performance access, 9-10/100/1000M Base-T Ethernet RJ45 ports; 6KV lightning-proof for all port; every single port support MDI/MDIX and wired speed; PoE ports supports IEEE802.3at/af standard while detecting and recognizing the IEEE802.3at/af standard power device automatically. Through conventional Cat 5e twisted-pair cable, power can be transmitted along with data for AP, IP Camera and IP Phone. With PoE dynamic power, easier configure, flexible extend network without being limited by the power line layout, plug and play, helping SMB,hotel, shopping mall,school to build high-security and reliability network of wireless cover and HD monitor.

Standard & Protocol IEEE 802.3,IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
MTBF ≥ 50,000 hours(about 5 years)
Indicator Link/Act, Power
exchange capacity 18 Gbps
Packet Forwarding Rate 1.488Mpps
Fixed Port 8 10/100/1000Mbps RJ45 Ports(Data/PoE)
1 10/100/1000Mbps RJ45 Ports(Data)
(Auto Negotiation/Auto MDI/MDIX)
Capacity Wire-speed forwarding: Support
Forwarding mode: Store-forward and cut-through
Mac Address Table: 16K
PoE Supply Port 1 to Port 8 support standard IEEE802.3at/af power( maximum power for each port is 30W),PoE power type is end-span(12+, 36- line pair)
Dimension 177.5mm × 104mm × 26mm(W× D× H)
Input Voltage AC: 100~240V~ 50/60Hz
DC: 51V /2.0A (Power Adapter Output )
Power Consumption in full configuration:<102W
PoE Power Supply :<92W
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification FCC, CE, RHOS, CCC

Package Content:
1 x Tenda TEG1109P-8-102W 9-Port Gigabit Desktop Switch with 8-Port PoE
