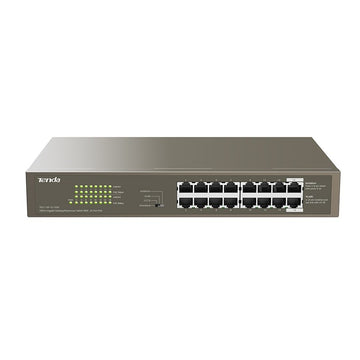

Tenda TEG1116P-16-150W 1000M and PoE 16-Port Gigabit Ethernet Switch with 16-Port PoE

Regular price $349.99
Sale price $349.99 Regular price $356.95
Unit price
Tax included.
  • 24 Hours Dispatch | 12 Months Warranty

Tenda TEG1116P-16-150W 1000M and PoE 16-Port Gigabit Ethernet Switch with 16-Port PoE

Tenda TEG1116P-16-150W 1000M and PoE 16-Port Gigabit Ethernet Switch with 16-Port PoE

Regular price $349.99
Sale price $349.99 Regular price $356.95
Unit price
Product description
Shipping
Return
Reviews

TEG1116P-16-150W is a Tenda PoE switch that o ers 16 10/100/1000 Mbps Base-TX RJ45 ports. Ports 1-16 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3at standard (maximum PoE power output: 30 W). The switch o ers a maximum PoE power output of 135 W and can supply power to and exchange data with APs, IP cameras, and IP phones through CAT5 cables. It also provides simple management modes such as CCTV, VLAN, and Isolation to help reduce cabling costs of IP terminals like APs and IP cameras.

Standard & Protocol IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/IEEE 802.3af/IEEE 802.3at
Indicator 16 × Link/Act per device
16 × PoE per device
1 × Power per device
Interface 16 10/100/1000Base-T ports(Data/Power)
Lightning Protection 6KV
Store &Forward Yes
exchange capacity 32 Gbps
Packet Forwarding Rate 23.6Mpps
RAM Data Buffer 4Mb
MAC Address Table 4K
PoE supply management Port 1-16 support IEEE802.3at/af PoE standard
PoE through pin 1 2 4 5 +
3 6 7 8 -
Input Voltage AC: 100-240V~50/60Hz
Dimension 294 × 178 × 44mm ( W x D x H )
Power Consumption in full con guration:<150W
PoE Max Power Supply: 135W
Port Features Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
CCTV: the port cache is optimized and PoE ports 1-8 have higher priorities over the other ports. All the ports of the switch can communicate with each other.
VLAN: ports 1 to 14 are isolated from each other, but can communicate with ports 15 and 16 (uplink ports) respectively.
Isolation: ports 1 to 8 and Ports 9 to 16 belong to two di erent VLAN.This mode can be used to isolate supervision network and wireless network to make them not interfere with each other.
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Package Content:
1 x Tenda TEG1116P-16-150W 1000M and PoE 16-Port Gigabit Ethernet Switch with 16-Port PoE
