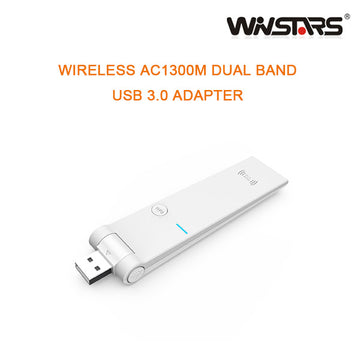

WINSTAR WIRELESS AC1300M DUAL BAND USB 3.0 ADAPTER
-
24 Hours Dispatch | 12 Months Warranty
WINSTAR WIRELESS AC1300M DUAL BAND USB 3.0 ADAPTER
Features
- 1300 (867+400)Mbps wireless speed
- Support 2.4GHz & 5GHz WLAN networks
- Dual Band connections for lag-free HD video streaming and gaming
- SuperSpeed USB 3.0 port, backward compatible to USB 2.0
- Complies with IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards
- 20MHz & 40MHz & 80MHz bandwidth transmission
- OFDM with BPSK, QPSK, 16QAM, 64QAM, 256QAMmodulation
- Supports Windows XP / Vista / 7 / 8 / 8.1/10, MAC
Specification
- Hardware
- Ports: USB 3.0
- Button: WPS
- LED: 1 X Link/ Active
- Chipset:RTL8812AU
- Flash: N/A
- SDRAM: N/A
- Power Supply: USB 5V
- Power Plug: N/A
- Power Consumption:/
- Rated Voltage/ requency /current:DC 5V about 500mA
- Wireless
- Standard:IEEE802.11ac,IEEE 802.11a, IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
- Modulation:
- 11ac\n: 16QAM, 64QAM 128QAM 256QAM with OFDM
- 11g: BPSK, QPSK, 16QAM, 64QAM, OFDM
- 11b: DQPSK, DBPSK, DSSS, CCK
- Speed:
- 802.11ac: up to 867Mbps
- 802.11n: up to 400Mbps
- 802.11a: up to 54Mbps
- 802.11g: 54 M
- 802.11b: 11 M
- Frequency band:5GHz and 2.4GHz
- Power:
- 802.11b: 22dBm ± 2 dBm 802.11g: 16dBm ± 2 dBm
- 802.11n: 15dBm ± 2 dBm 802.11ac: 14dBm ± 2 dBm
- Distance:Outdoors 300m, Indoor 100m(According to the actual environment change)
- Safely 64/128-bit WEP, AES,TKIP,WPA,WPA2,802.1x,WPA-PSK,WPA2-PSK,MAC, WDS
- Environmental
- Operating Temperature:0ºC~40ºC
- Storage Temperature:-10~70
- Relative Humidity(Operational): 10%~90%,noncondensing
- Relative Humidity(Storage):10%~90%,noncondensing
- Software
- Standard Version
- RFC768 User Datagram Protocol(UDP)
- RFC791 Internet Protocol(IP)
- RFC792 Internet Control Message Protocol
- RFC793 Transmission Control Protocol(TCP)
- bandwidth 20MHz??40MHz??80MHz
- Wireless Mode 11ac only, 11n only, 11g only??11b only(option)
- System Windows XP / Vista / 7 / 8 / 8.1/10, MAC
Product weight and dimensions
Item Weight: 0.25 KG
Product Dimensions: 98mm L x 28mm W x 10mm (L x W x H)
Package content
- 1 x Wireless-AC USB3.0 Aapter
- 1 x Quick Installation
- 1 x CD driver
